On-site rollers
Curtain rollers manufactured in Oswestry with our own highly precise moulded bearings. OEM and aftermarket.
Since 2000
On-site rollers
304 stainless
Curtain sider
ancillaries
Rollers, bobbins, rings, stainless buckles, straps and backplates — manufactured and stocked for UK and global bodybuilders. Rollers are moulded on site with our own bearings.
Planenauflieger-Zubehör · Rollen, Schnallen, Bobbins — seit 2000
Advantages
The parts a curtainsider is built from
Same job for a UK body line or a European OEM: the roller has to match the track, the buckle has to hold, and the box has to arrive on time.
Match the track
Specify wheel width (x), track height (y) and bracket. Main bar, net hanger or frog face, 3 mm or 5 mm zinc plate.
1800 kg UTS
Published ultimate tensile strength on the roller, bobbin and ring families in the curtainsider catalogue.
Stainless buckles
304/S throughout. Over-centre, anti-slip lock and push-up types for 45 mm and 50 mm webbing.
Bobbins & rings
Solid and bearing bobbins for most trailer makers. Narrow and wide waisted rings. Stainless balls where specified.
Weld-on PVC
High-frequency / heat-applied PVC webbing in white, grey or black. 500 m boxes.

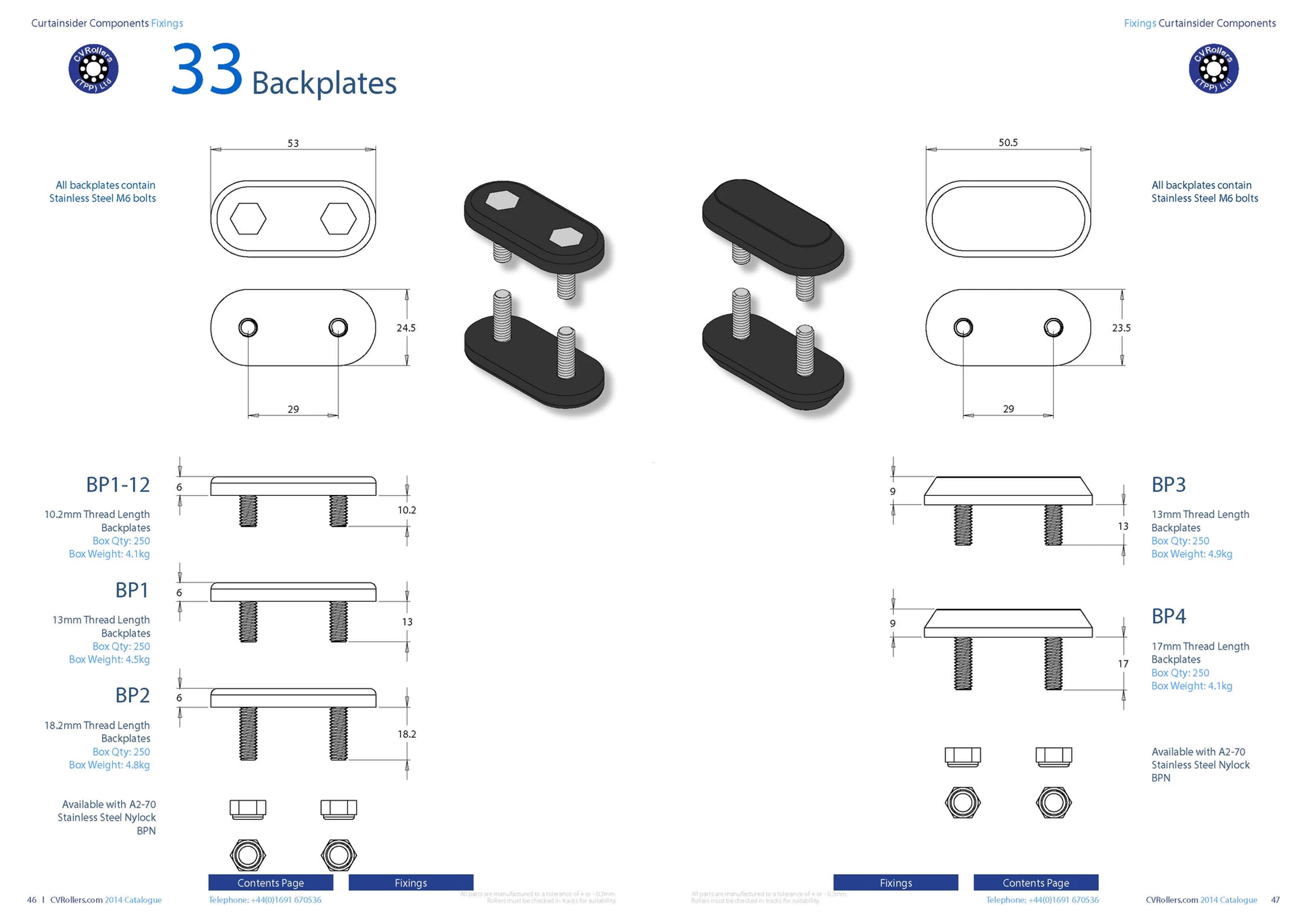

First-time backplates
Nylon body, stainless M6 bolts, A2-70 nylock. Thread lengths from 10.2 mm to 18.2 mm.
Stock for the line
Box quantities published per part. Built to keep a bodybuilder’s curtain line moving, not waiting on a special.
Product range
Rollers first. Then everything that tensions the curtain.

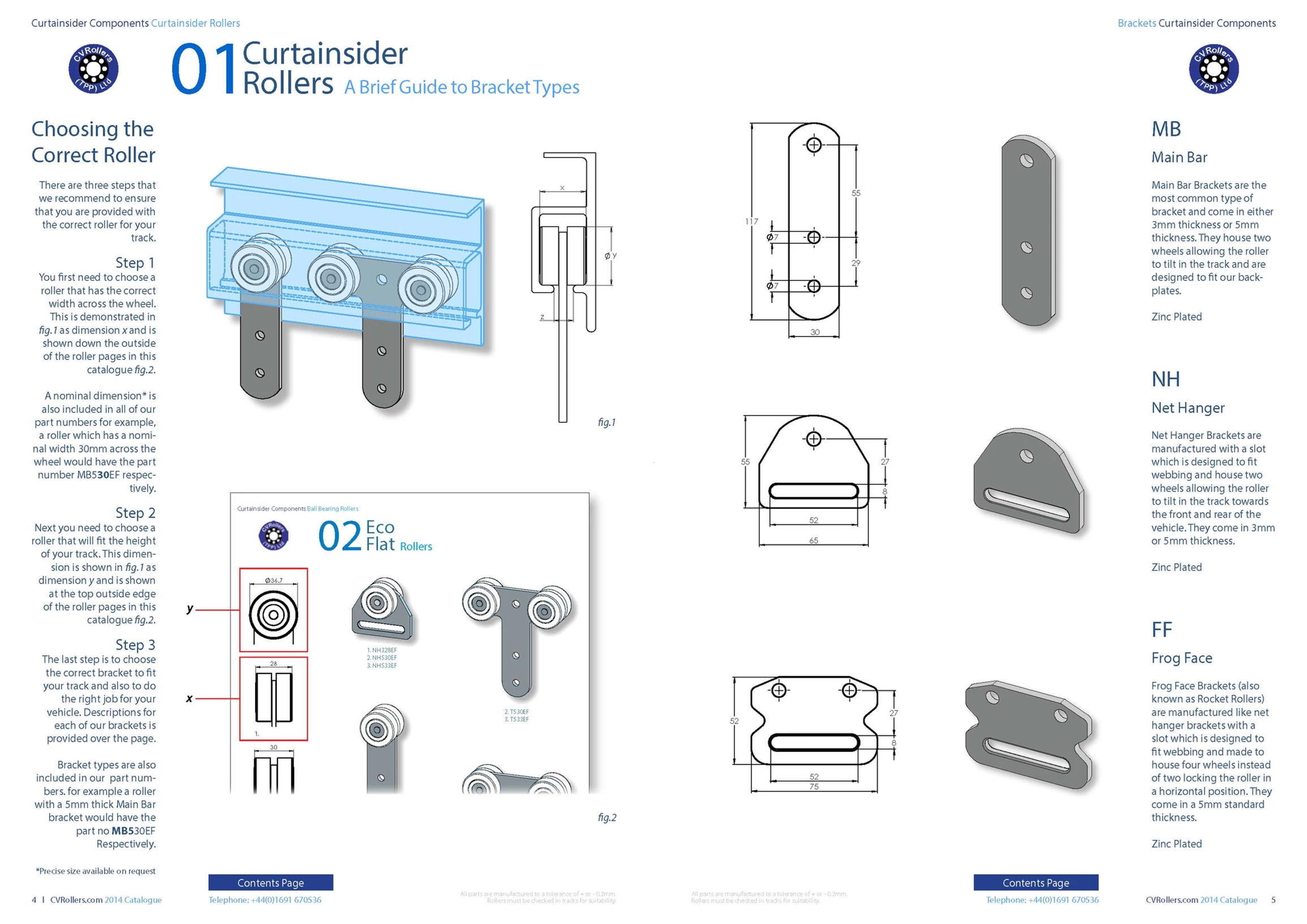

How to specify a roller
| 1. Wheel width (x) | Must match the track. e.g. 30 mm wheel → part family MB530EF |
|---|---|
| 2. Track height (y) | Taken at the top outside of the roller |
| 3. Bracket | MB main bar · NH net hanger · FF frog face (rocket) |
| Bracket stock | Zinc plated, 3 mm or 5 mm (FF 5 mm) |
| Bearings | In-house moulded. Stainless balls on most families |
| UTS | 1800 kg (catalogue) |

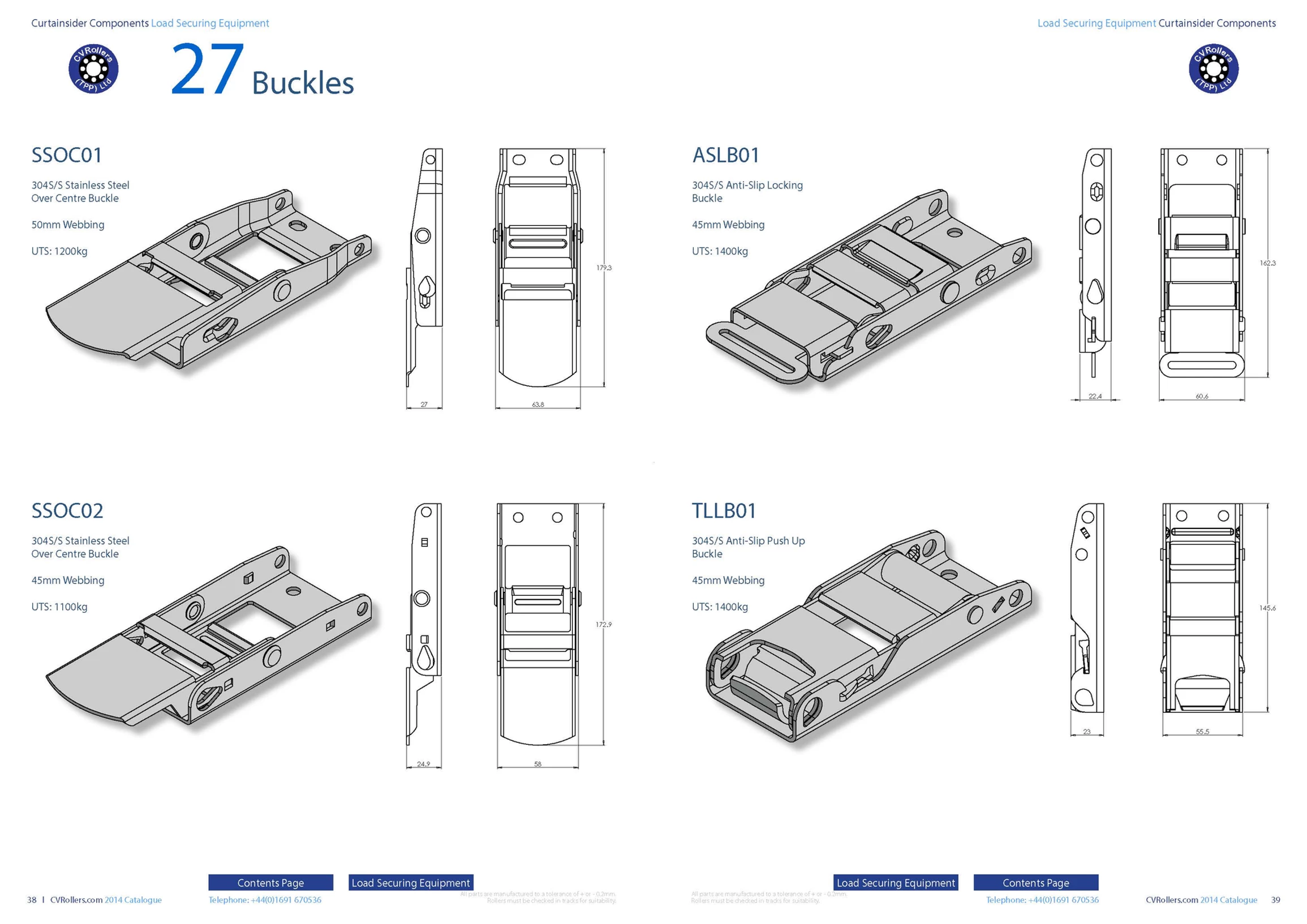

Buckle ratings
| SSOC01 | 304/S over-centre · 50 mm webbing · UTS 1200 kg |
|---|---|
| SSOC02 | 304/S over-centre · 45 mm webbing · UTS 1100 kg |
| ASLB01 | 304/S anti-slip locking · 45 mm · UTS 1400 kg |
| TLLB01 | 304/S anti-slip push-up · 45 mm · UTS 1400 kg |
| SRA01 / SCRA01 | 5 tonne ratchet · with or without standard strap |
Range
Four families. One factory.

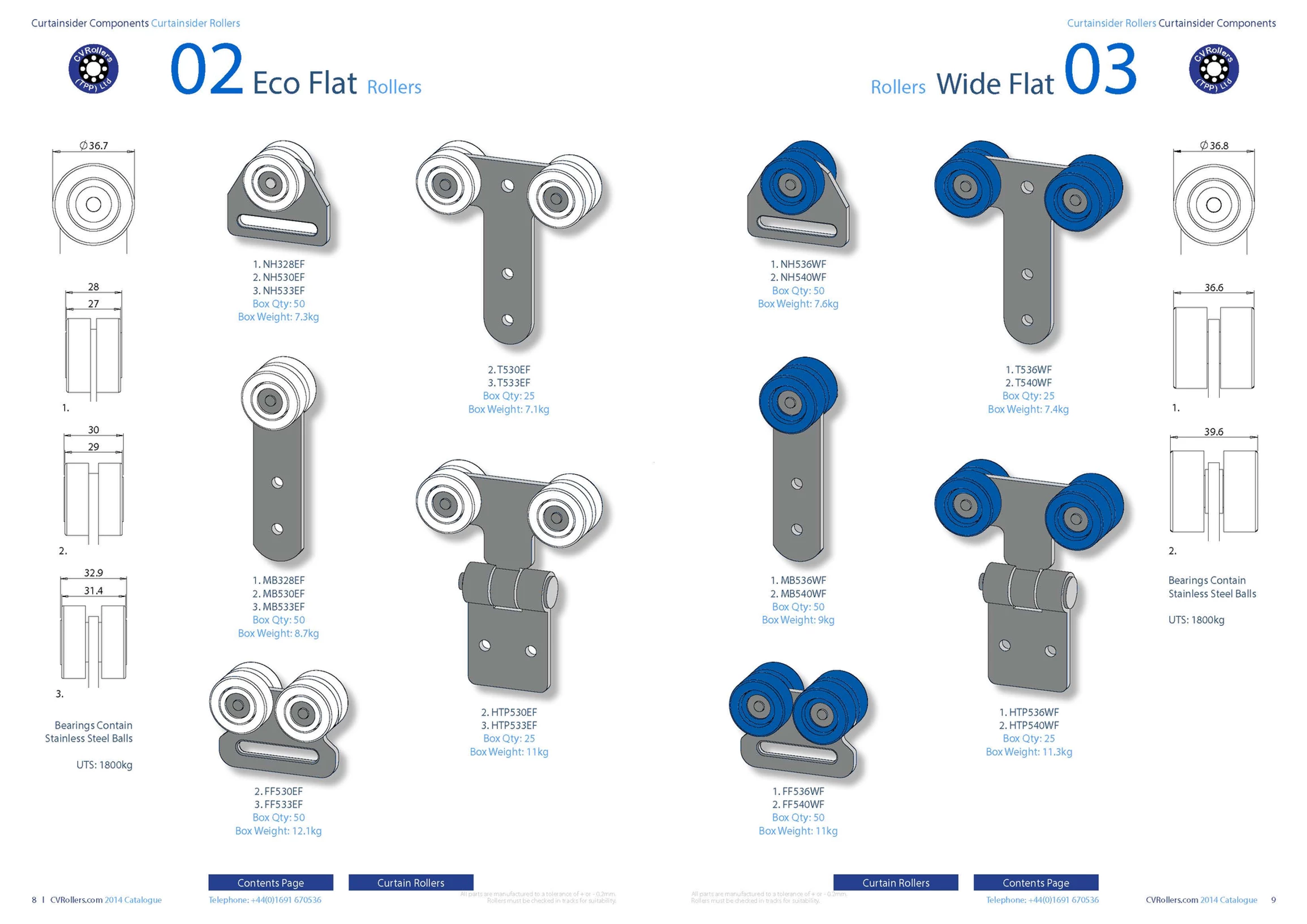

Rollers

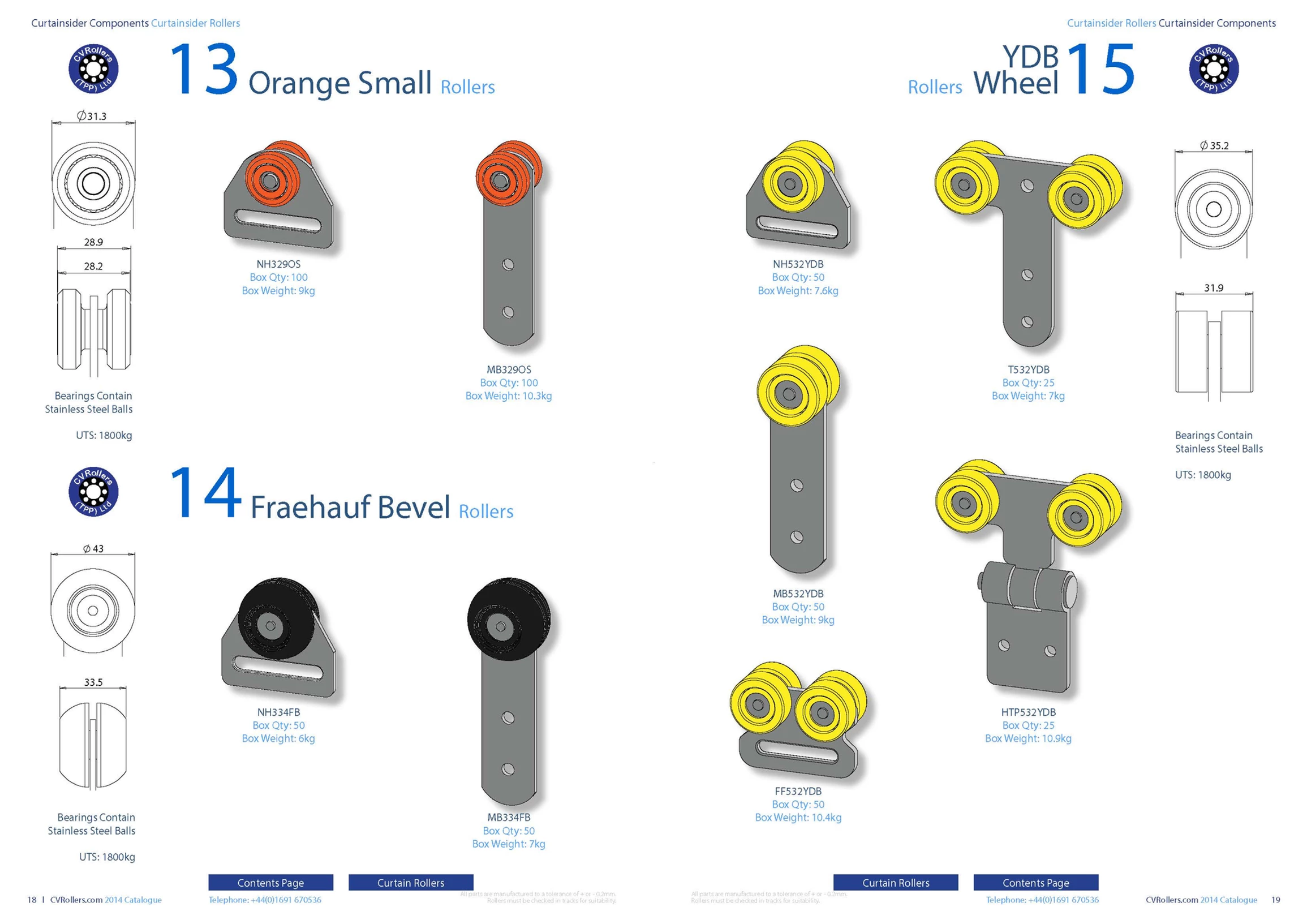

Eco flat, wide flat, orange small, Fruehauf bevel, YDB wheel, solid eco flat, steel wheel, turned steel, blue flat tyre.
- UTS 1800 kg
- Stainless balls on bearing families
- MB / NH / FF / T / hinged T brackets

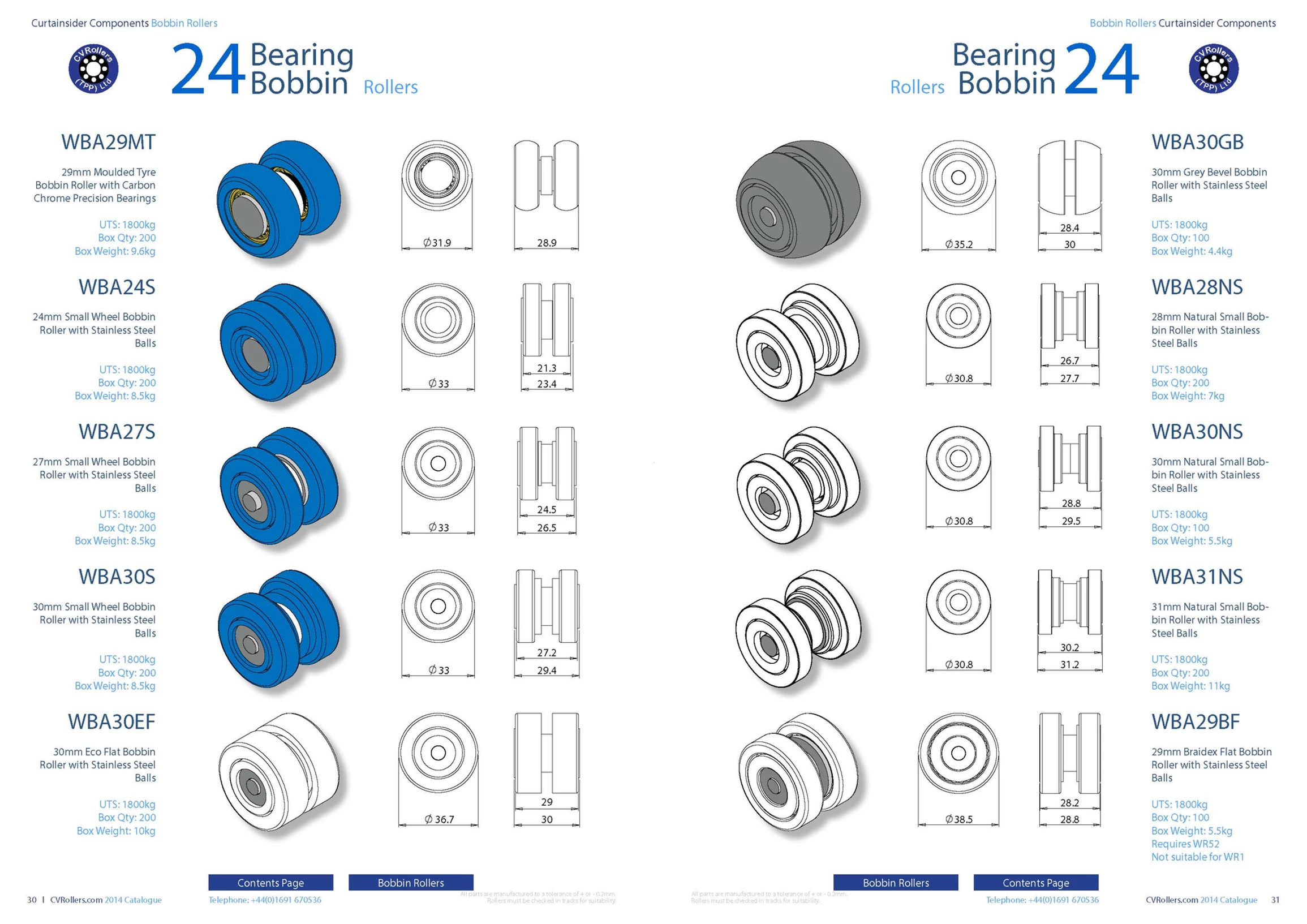

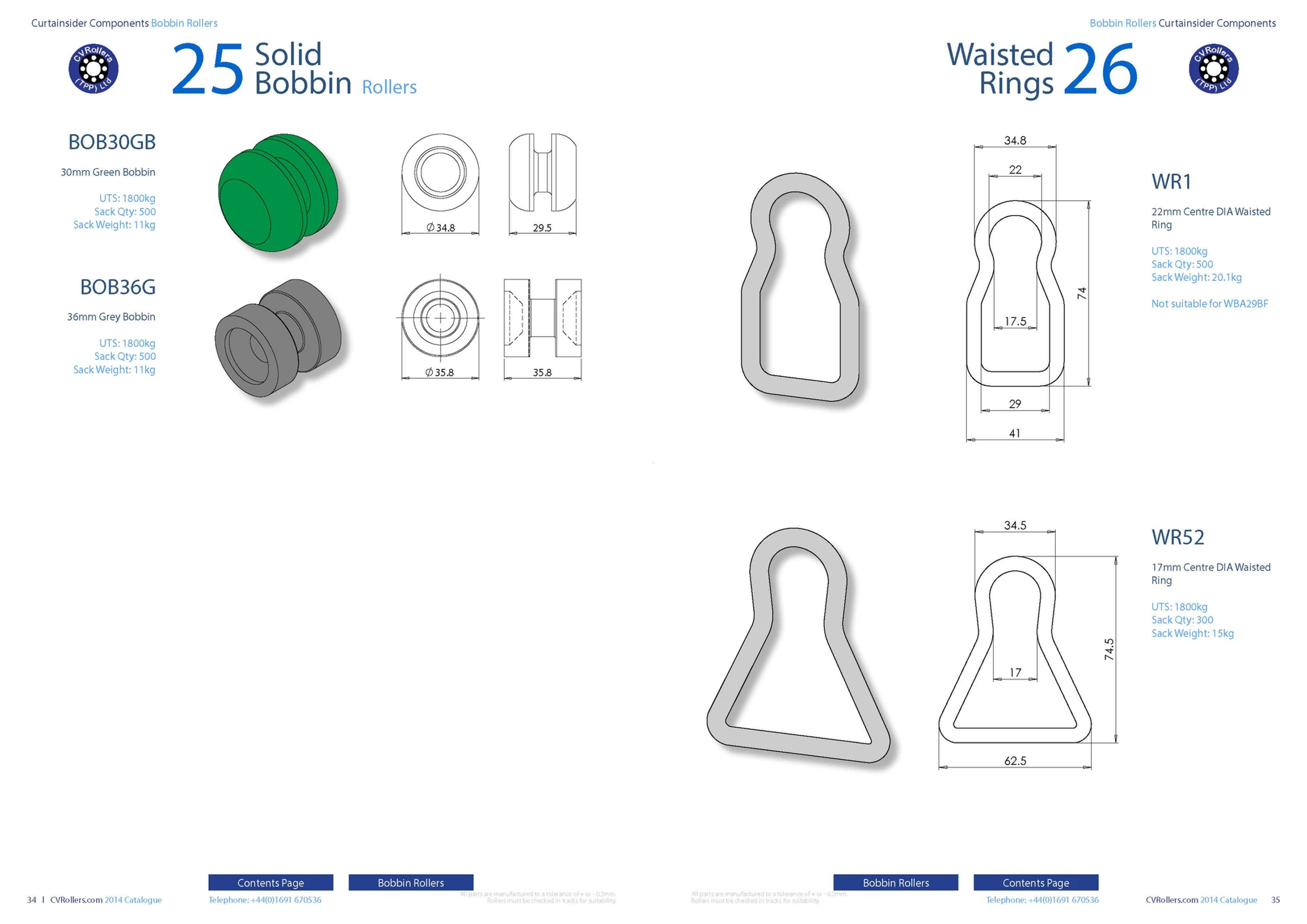

Bobbins & rings
Bearing and solid bobbins for most trailer manufacturers. Narrow and wide waisted rings.
- UTS 1800 kg
- e.g. WBA30S, BOB30GB, WR1, WR52
- Stainless balls where the part number calls for them

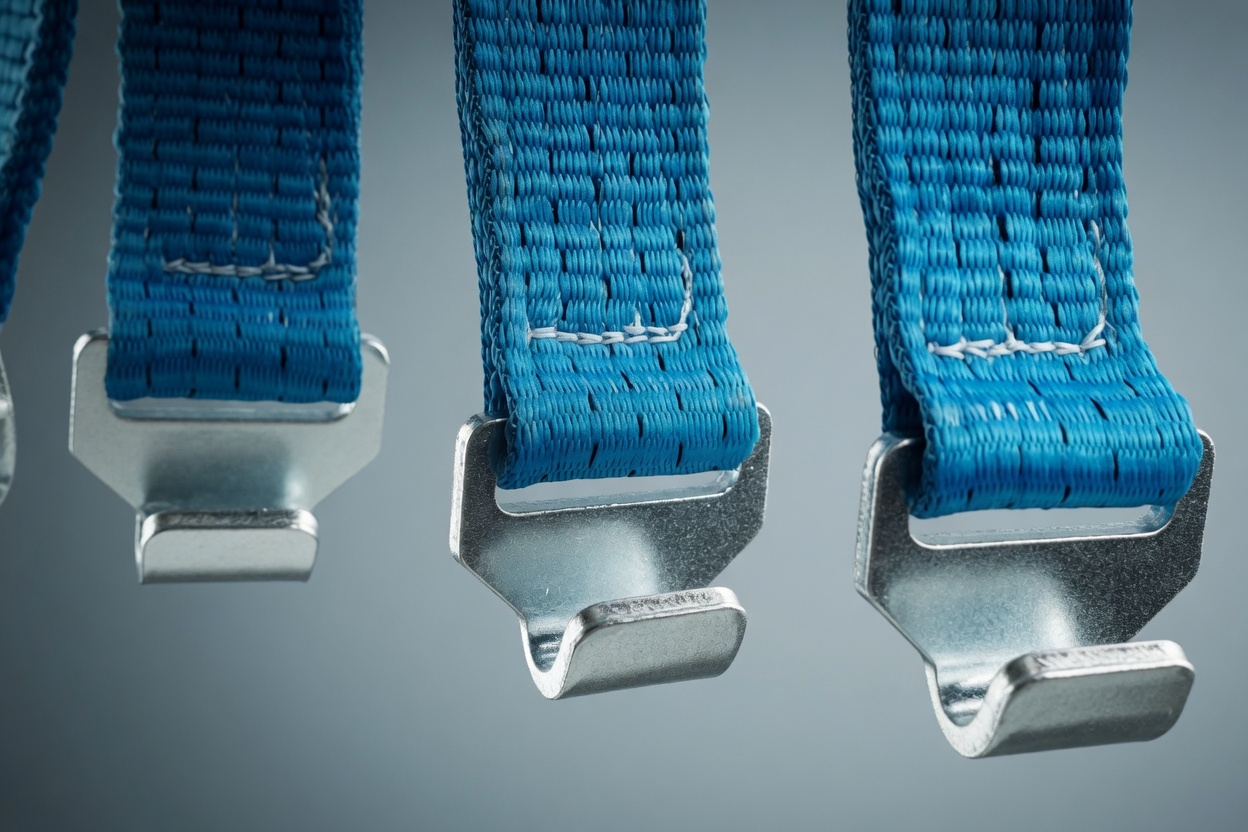

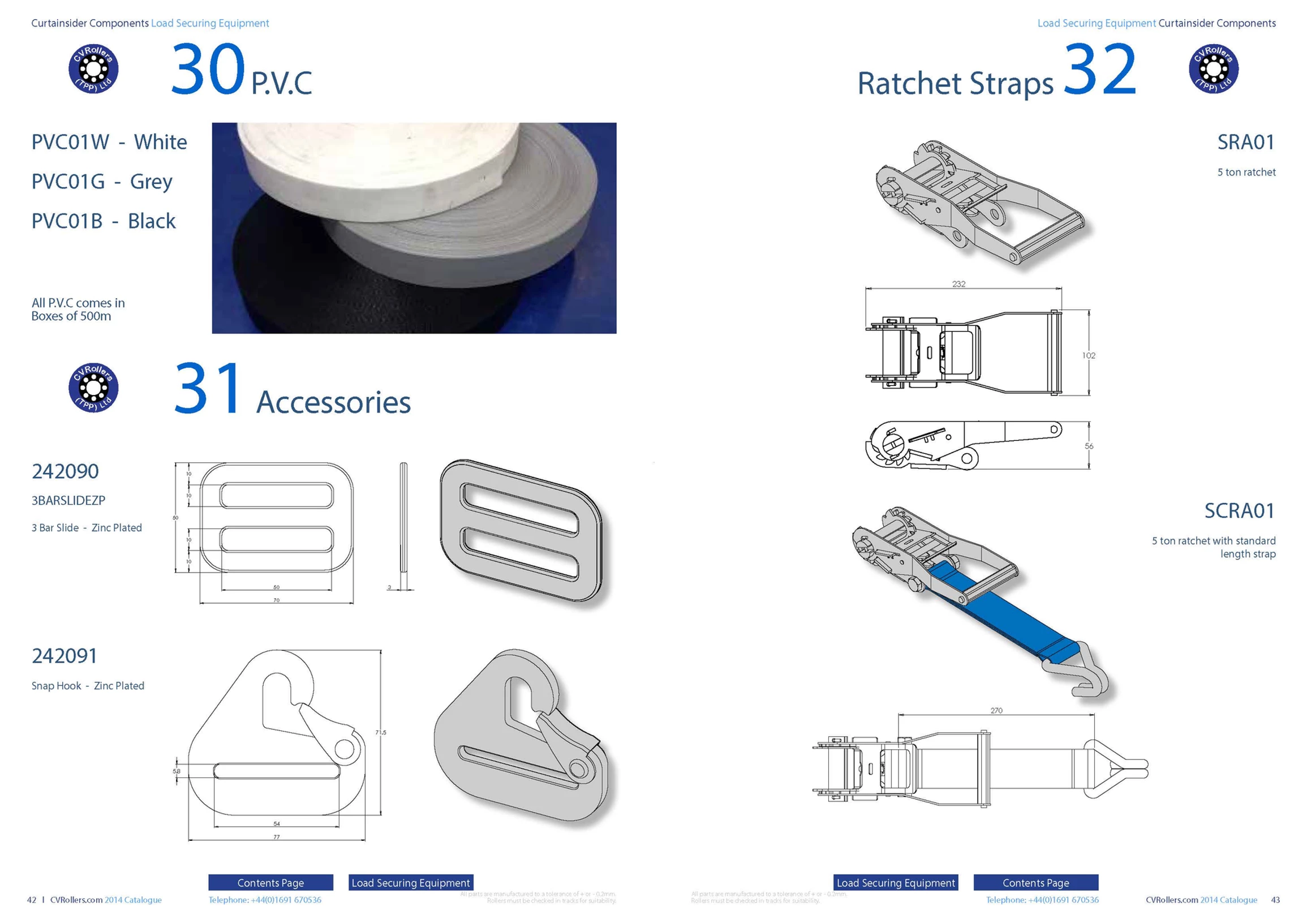

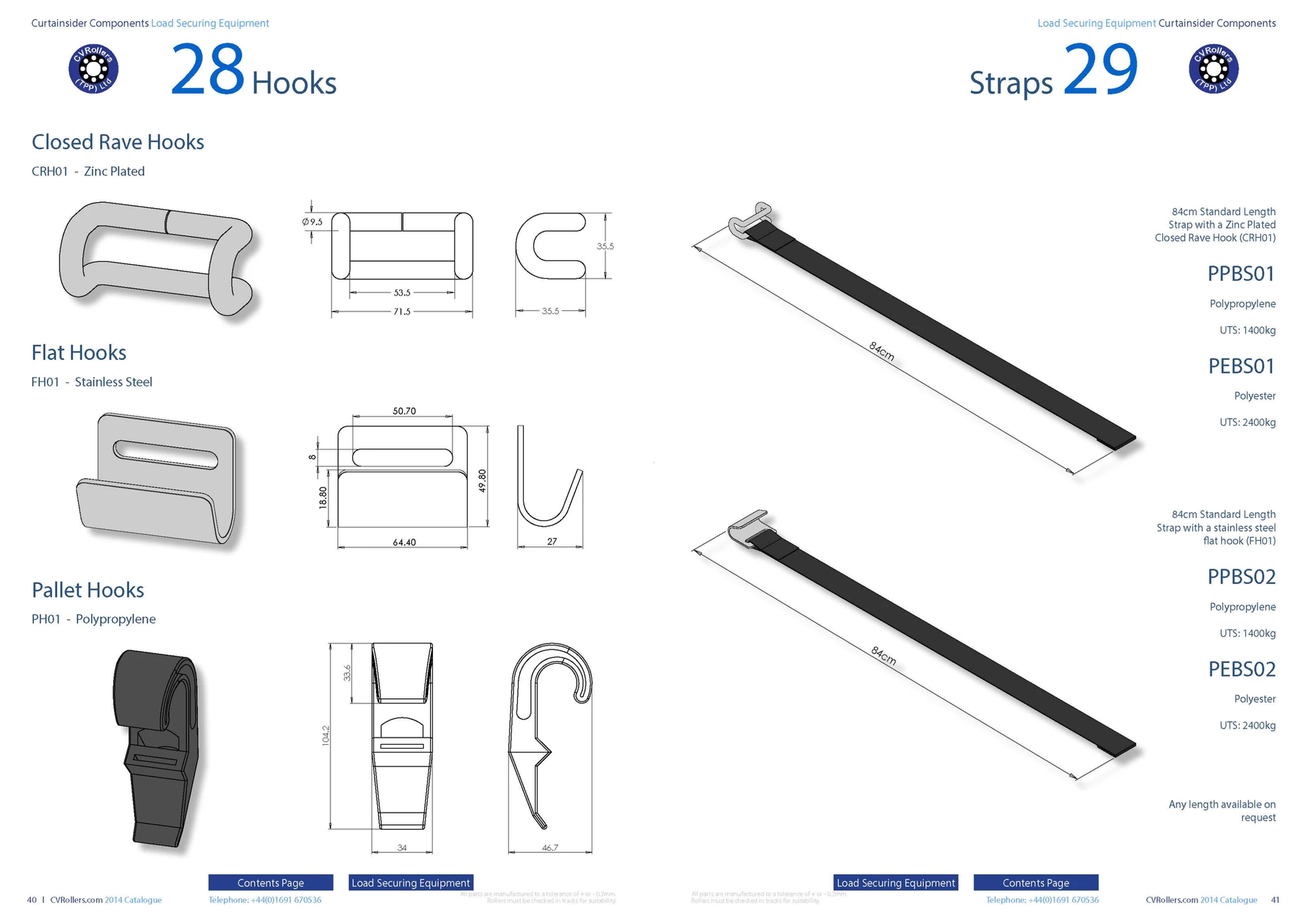

Straps, hooks, PVC
84 cm standard straps, any length on request. Closed rave, flat and pallet hooks. Heat-applied PVC webbing.
- Polyester UTS 2400 kg · polypropylene 1400 kg
- PVC01W / G / B · 500 m boxes
- 5 t ratchet SRA01 / SCRA01
Published ratings
From the curtainsider catalogue
UTS figures below are the published catalogue values. Confirm the current part on the quote.
| Family | Published rating / note |
|---|---|
| Curtain rollers (bearing & solid) | UTS 1800 kg |
| Bearing / solid bobbins | UTS 1800 kg |
| Waisted rings WR1 / WR52 | UTS 1800 kg |
| Stainless over-centre buckles | 1100–1200 kg UTS · 45 / 50 mm webbing |
| Anti-slip buckles | 1400 kg UTS · 45 mm webbing |
| Polyester strap 84 cm | UTS 2400 kg |
| Polypropylene strap 84 cm | UTS 1400 kg |
| Ratchet | 5 tonne · SRA01 / SCRA01 |
| Backplates | Nylon body · stainless M6 · A2-70 nylock |
| PVC weld-on webbing | White / grey / black · 500 m box |
United Kingdom
Bodybuilders since 2000
On-site curtain roller manufacture for the major UK body lines, plus a stocked ancillary range for repair and aftermarket. Same parts the global accounts already buy.
- UK moulded bearings and roller assemblies
- Track-matched wheel width and bracket
- Works with Slide & Carry on the same curtainsider
European Union
Specified into EN curtainsider bodies
EN 12642 Code L / XL is a complete-body standard. EN 12641 covers the curtain / tarpaulin. We supply the running and tensioning hardware that goes on those bodies — we do not certificate the trailer.
- EN 12642 L / XL — body strength. Fit our rollers and buckles to the bodybuilder’s spec
- EN 12641-1 / -2 — tarpaulins. PVC weld-on webbing and straps sit on that curtain
- UTS in kg, millimetre envelopes, 304 stainless — the numbers EU buyers ask for
We will not print “XL certified” on a roller. XL sits on the finished body. Send the track drawing and we will pick the wheel and bracket.
EN 12642 L / XL
EN 12641
UTS 1800 kg
304 S/S
Fruehauf / OEM
Catalogue & hardware
The pages bodybuilders already use
2014 curtainsider catalogue spreads, plus a strap close-up. Click to open.
Enquire
Send track size or part number
Wheel width, track height and bracket — or a Fruehauf / OEM part you already use. We will reply with the current box quantity and UTS.
Phone
+44 (0) 1691 670 536
Email
sales@cvrollers.co.uk
Works
Mile Oak Ind Est, Maesbury Road
Oswestry, Shropshire SY10 8GA
Oswestry, Shropshire SY10 8GA
