Complete on site
Conveyors are designed and produced in Oswestry. Short loop from SolidWorks to moulding to assembled chain.
Overhead chain
Tube / T-type
Acetal
Poultry line
conveyors
Complete overhead conveyors designed and built on site. Case-hardened 8 × 25.4 mm chain, acetal trolleys and wheels, tube or T-type — wheel and strap variants for modern processing lines.
Geflügelverarbeitung · Hängeförderer, Trolleys und Räder — UK-Fertigung
Advantages
Built for a wet plant, not a dry warehouse
On-site design and moulding mean the trolley, strap and wheel are one family — not three bought-in parts hoping they line up on a 25.4 mm chain.
Standard poultry chain
Case-hardened galvanised 8 × 25.4 mm pitch. Catalogue: fully compatible with all poultry chain.
Tube or T-type
TS1 tube bracket or TS2 T-type for overhead / poultry conveyor. Same wheel family on both.
Standard or slim wheel
PPW01-01 standard, POU48-17-8 slim, or PW01-05 50 mm. Choice of colours.
Homopolymer / copolymer
Wheels in acetal homopolymer. Straps in acetal copolymer — the copolymer is the more chemical-resistant of the two.
Stainless balls
420 / ASI stainless steel balls in the trolley wheels. Specified for wet process rooms.
UK poultry supply
A key player in UK poultry processing conveyor supply — new lines and replacements.
Honest on food contact
We name the polymer family on the page. Grade datasheets and any food-contact letter go with the quote — not on the open site.
Product range
Assembled chain, or the parts that make it

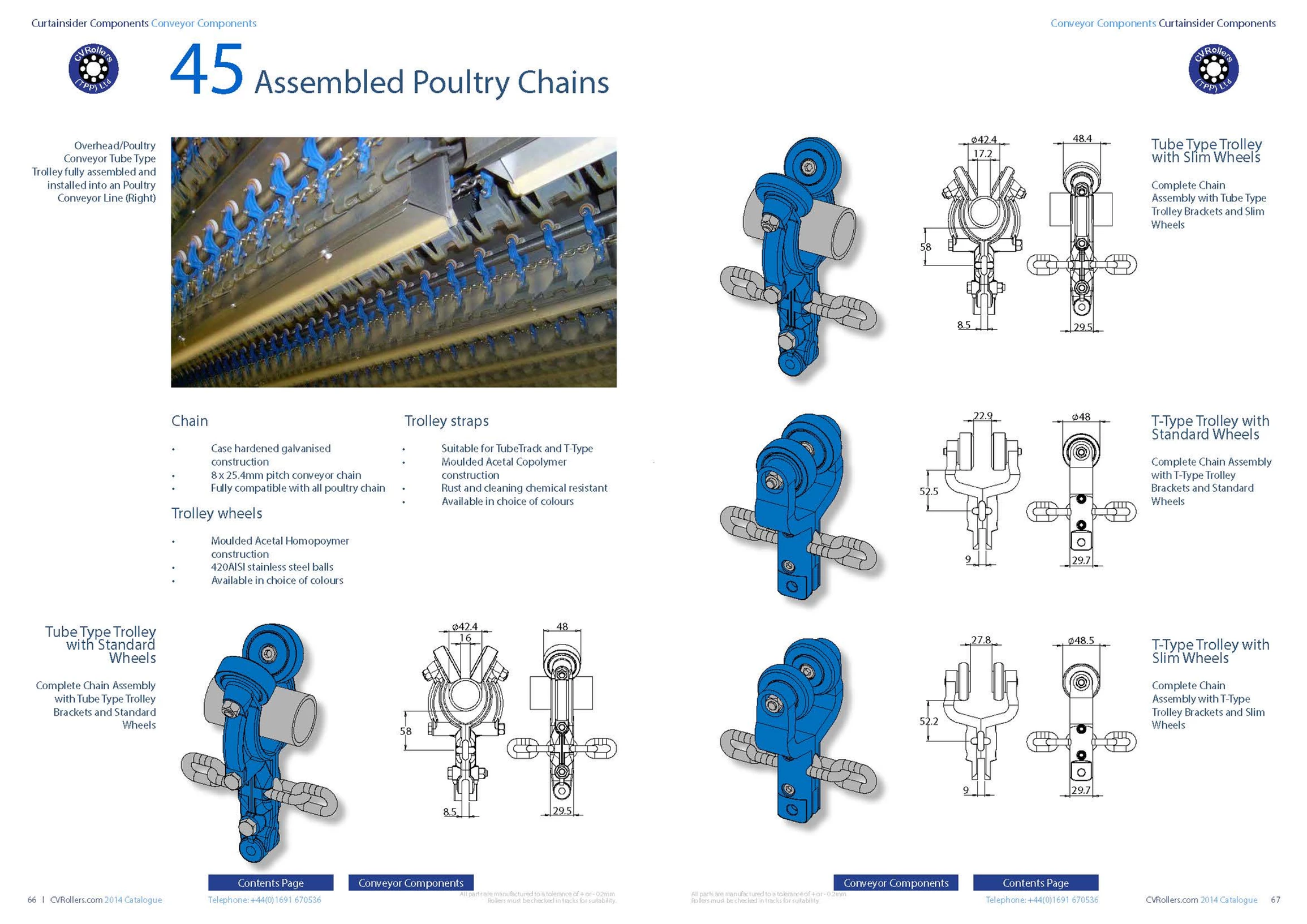

Assembled chain
| Chain | Case-hardened galvanised · 8 × 25.4 mm pitch |
|---|---|
| Compatibility | Fully compatible with all poultry chain |
| Wheels | Acetal homopolymer · 420 SS balls |
| Straps | Acetal copolymer · chemical resistant |
| Colours | Wheels and straps to choice |
| Four builds | Tube or T-type × standard or slim wheel |

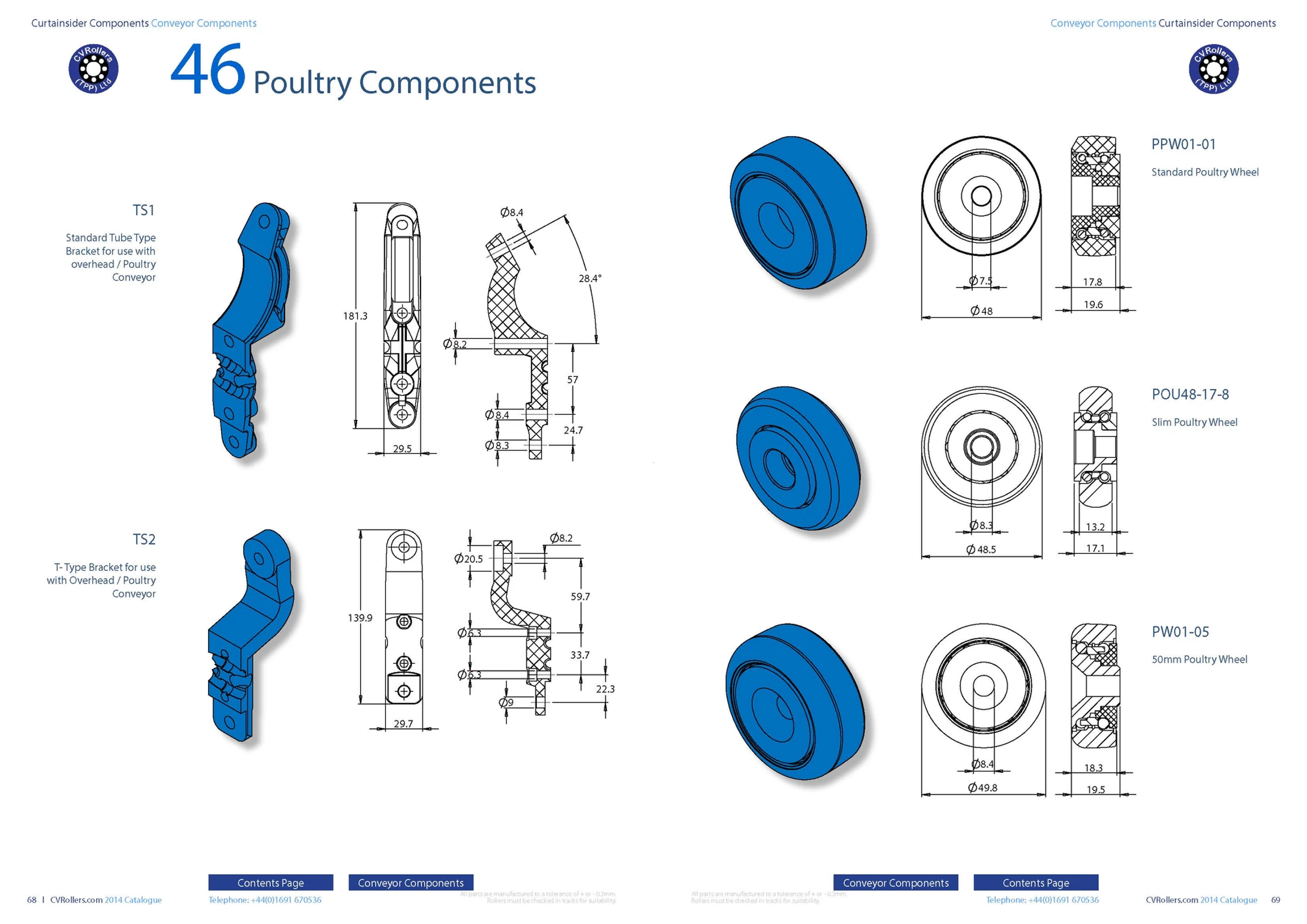

Component data
| TS1 | Standard tube-type bracket · overhead / poultry |
|---|---|
| TS2 | T-type bracket · overhead / poultry |
| PPW01-01 | Standard poultry wheel · Ø 48 mm |
| POU48-17-8 | Slim poultry wheel · Ø 48.5 mm |
| PW01-05 | 50 mm poultry wheel · Ø 49.8 mm |
On the line
From overhead chain to retail pack

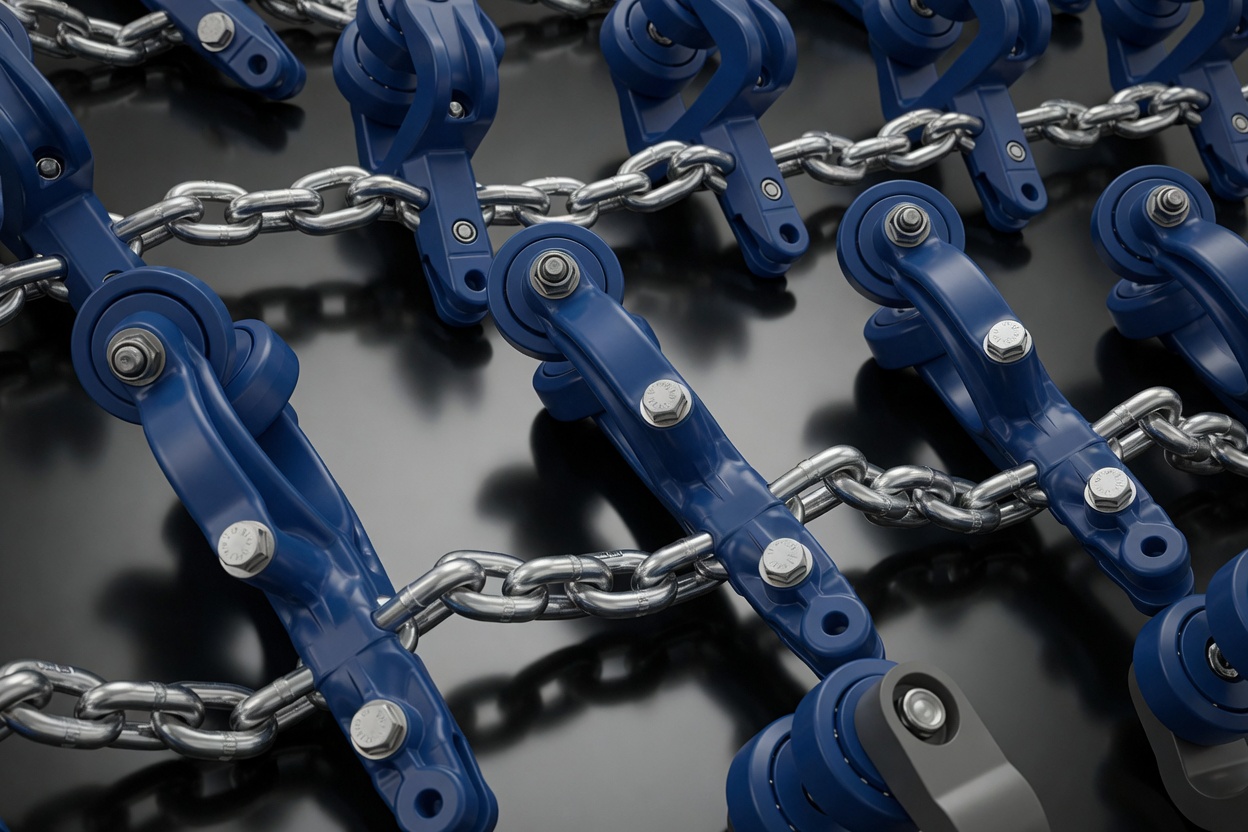

Trolley & chain
The running gear of an overhead poultry line. Acetal body, stainless balls, galvanised chain.
- 8 × 25.4 mm pitch
- Tube-track or T-type
- Standard or slim wheel
In the plant
Specified into continuous processing rooms — wet floors, chemical clean-down, daily duty cycles.
- New lines and replacements
- Hygiene-conscious layouts where required
- Paired with our conveyor bearing work
To the pack
The line exists to put a packed bird on the supermarket shelf. We supply the conveyor that gets it there.
- Equipment builders and plants
- UK design, mould and assemble
- Inspected before it leaves Oswestry
Published data
From the conveyor catalogue
Dimensions and materials below are the published catalogue values. Confirm the current part on the quote.
| Item | Published spec |
|---|---|
| Poultry chain | Case-hardened galvanised · 8 × 25.4 mm pitch |
| Chain compatibility | All poultry chain (catalogue) |
| Trolley wheel material | Acetal homopolymer (POM-H) |
| Wheel balls | 420 / ASI stainless steel |
| Trolley strap material | Acetal copolymer (POM-C) · chemical resistant |
| TS1 bracket | Tube type · ~181 mm body (catalogue drawing) |
| TS2 bracket | T-type · ~140 mm body (catalogue drawing) |
| Standard wheel PPW01-01 | Ø 48 mm |
| Slim wheel POU48-17-8 | Ø 48.5 mm |
| 50 mm wheel PW01-05 | Ø 49.8 mm |
United Kingdom
UK poultry conveyor supply
A key player in the design and manufacture of UK poultry processing conveyors. Complete systems from the Oswestry factory, with wheel and strap variants for most modern lines.
- On-site design, moulding and assembly
- New plant and replacement trolleys / chain
- Works with our conveyor-bearing range on the same site
European Union
How EU plants specify this
Wheels are acetal homopolymer. Straps are acetal copolymer. Polymer datasheets and any food-contact letter are sent with the quote — they are not published here.
- (EC) 1935/2004 / (EU) 10/2011 — the food-contact rules a plant QA team will name. A declaration is supplied only if we hold one for that batch
- EN 1672-2 — food-machinery hygiene design (cleanable surfaces). How the trolley is built, not a type-approval stamp
- Machinery Directive 2006/42/EC — a complete line is machinery. A wheel or strap is a component
We do not print “food-contact certified” or a CE mark on this page.
POM-H wheels
POM-C straps
EN 1672-2
420 SS
Catalogue & plant
The drawings and the line
Enquire
Send chain type and trolley
Tube or T-type, standard or slim wheel, new line or replacement. We will reply with the current assembly. Polymer datasheets go with the quote if you need them.
