Fully assembled
Drawer packs arrive built. Installation is measured in minutes on the locker, not hours in the shop.
Fire & Rescue
Load Buddy
Lock-in / Lock-out
Heavy-duty
drawer systems
Fully assembled locker drawers for fire and rescue appliances, plus Load Buddy pickup trays. Lock-in / lock-out, slide-tilt and slam-lock options — fitted in minutes, specified in millimetres.
Schwerlast-Schubladensysteme · Feuerwehr, Rettung und Pritschenfahrzeuge
Advantages
Built for the kerbside, not the brochure
Bodybuilders get a finished unit. Crews get lock-in when closed, lock-out when working, and trays that still move after a wet night.
Lock-in / lock-out
Stays shut on the road. Stays out when the crew is working the tray. Up to 350 kg in fire appliance lockers.
Slide & tilt
High lockers come down to the operator. Same aluminium tray family as the straight slide.
Payload first
Lightweight high-capacity design. Plastic bearings and aluminium sections keep the weight off the axle.
No rust option
Load Buddy uses plastic, aluminium and stainless only — no mild steel in the pickup tray.

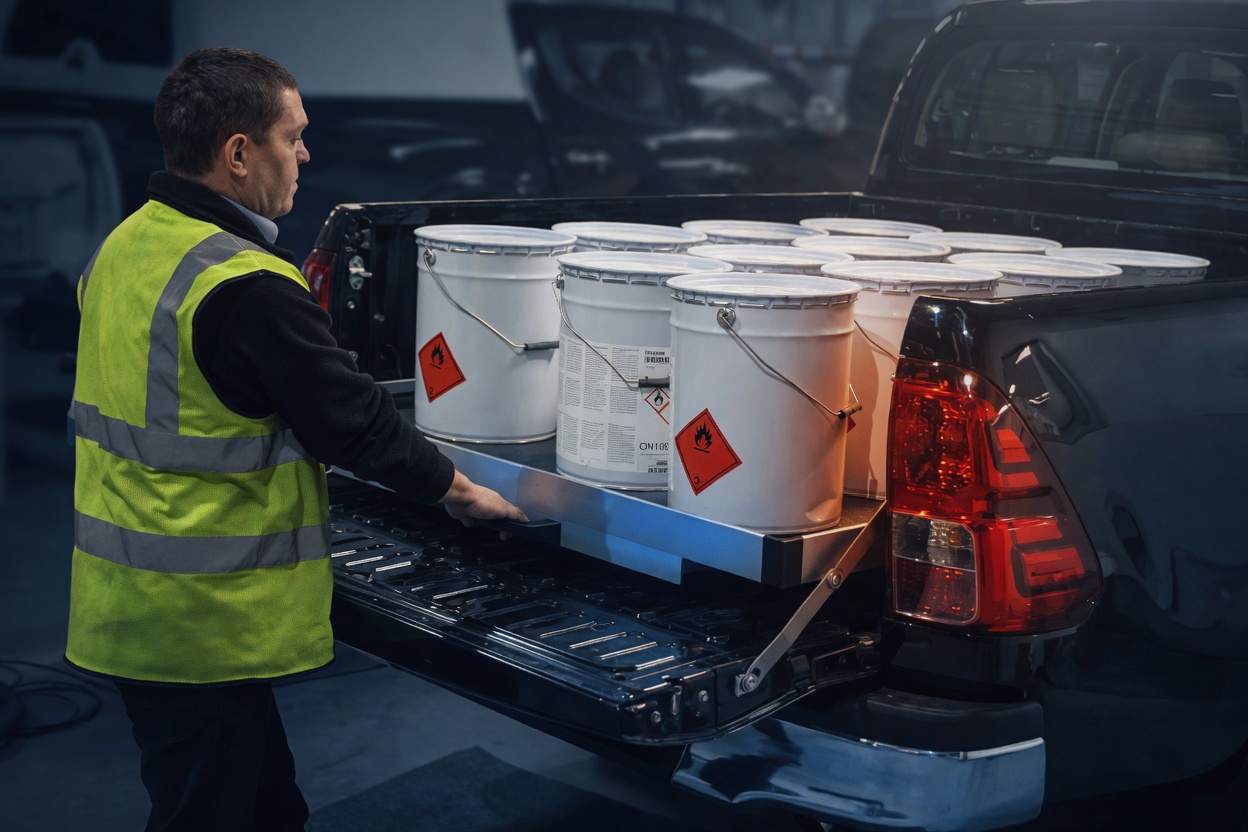

One-hand pickup
Load Buddy is lock-in / lock-out with one-hand operation. Retro-fit or new fleet.
UK manufactured
Designed, moulded and assembled in Oswestry. SolidWorks if the locker is non-standard.
UK & EU bodies
Specified into UK fire appliances and EN 1846-2 locker / drawer stowage on European rescue vehicles.
Product range
Two families. Same factory.
Fire appliance lockers and pickup trays share the lock-in / lock-out idea. The hardware is built for each vehicle.
Appliance locker data
| Application | Fire & rescue locker drawers |
|---|---|
| Lock-in / lock-out | Up to 350 kg |
| Supply | Fully assembled units |
| Options | Straight slide, slide-tilt, slam lock |
| Tool wall | Vertical peg-board / clamp wall |
| Fit | Minutes once the locker is ready |
| Bodies | UK appliances and EN 1846-2 lockers |

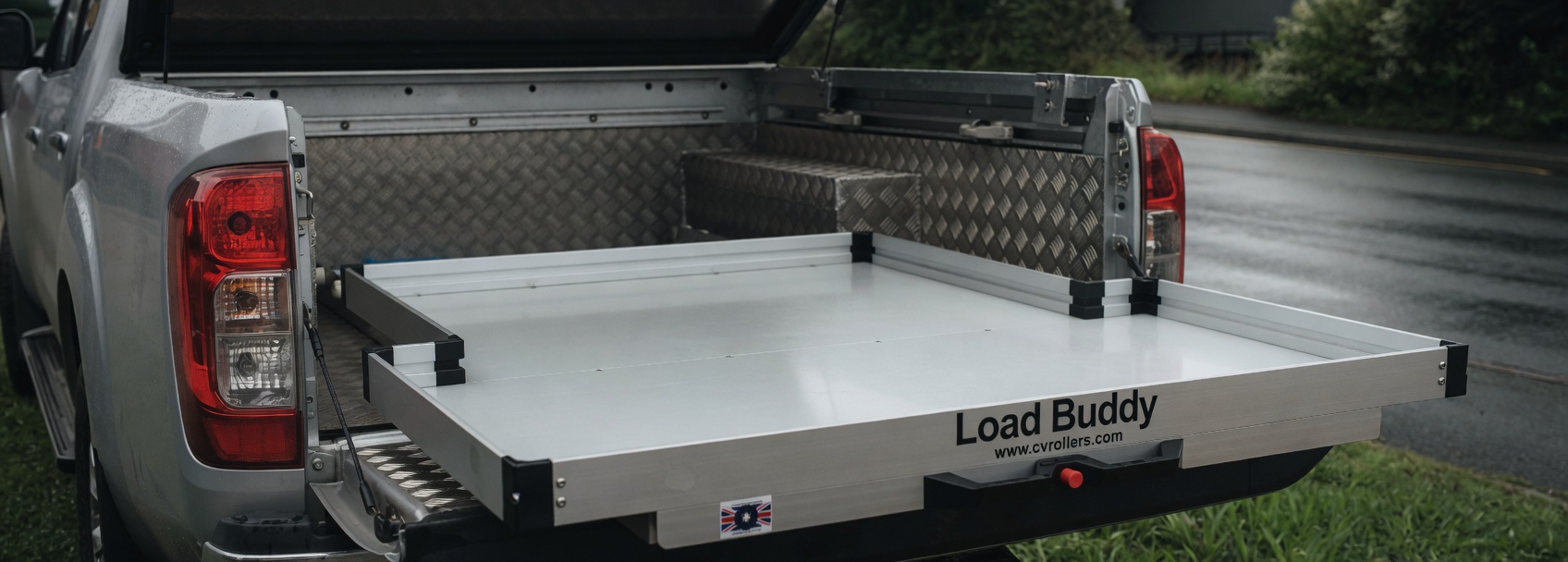

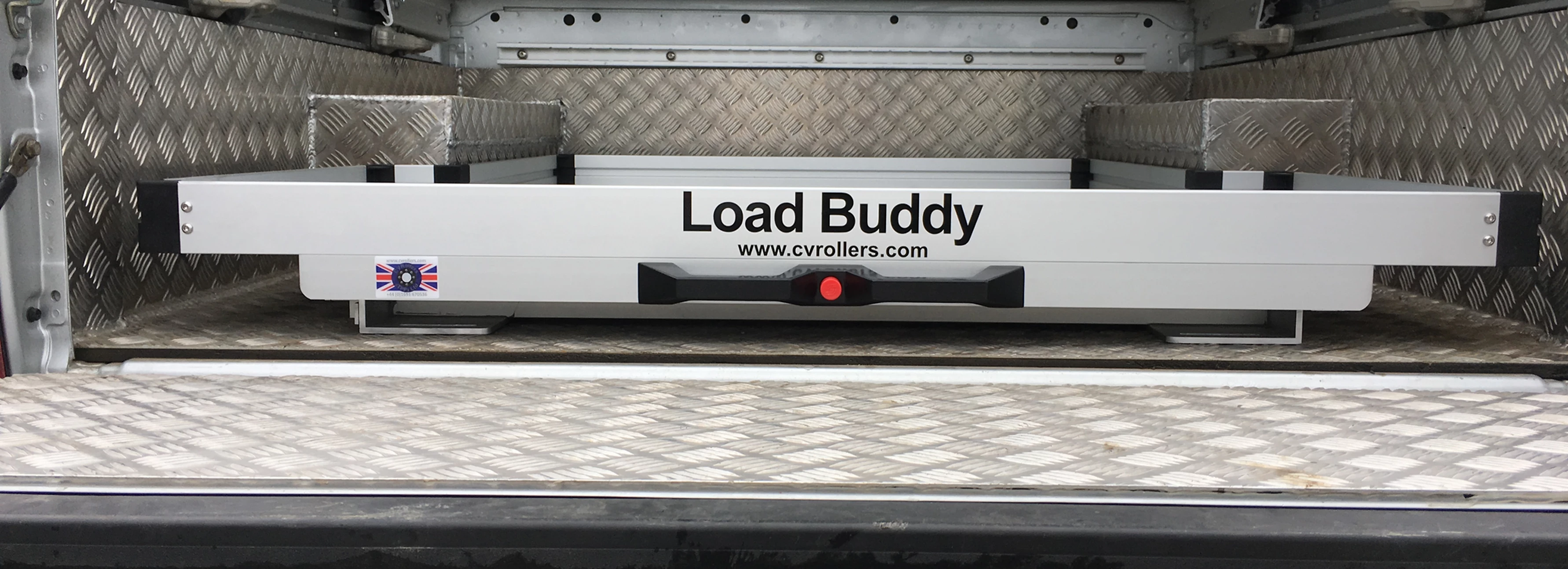

Load Buddy data
| Product | Load Buddy pickup drawer |
|---|---|
| Capacity, open | 250 kg fully extended |
| Capacity, closed | 500 kg |
| Materials | Plastic, aluminium, stainless — no mild steel |
| Operation | One-hand · lock-in / lock-out |
| Install | New fleet or retro-fit |
| Finish | Maintenance-free, corrosion resistant |
Configurations
How the locker works

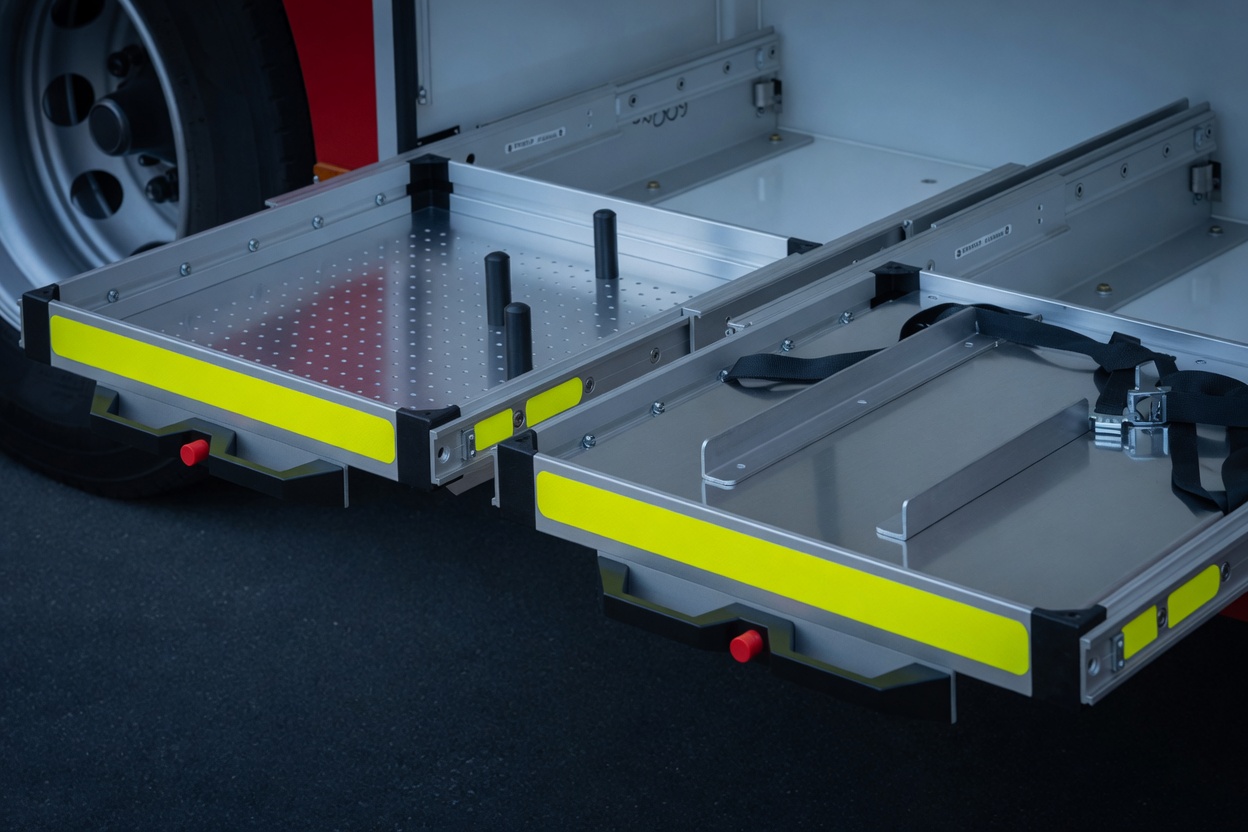

Lock-in / lock-out
Positive lock closed for the road. Positive lock open so the tray cannot run back under load. Up to 350 kg in appliance lockers.
- Fire appliance locker standard
- Also on Load Buddy pickups
- Red release pin, yellow safety edge

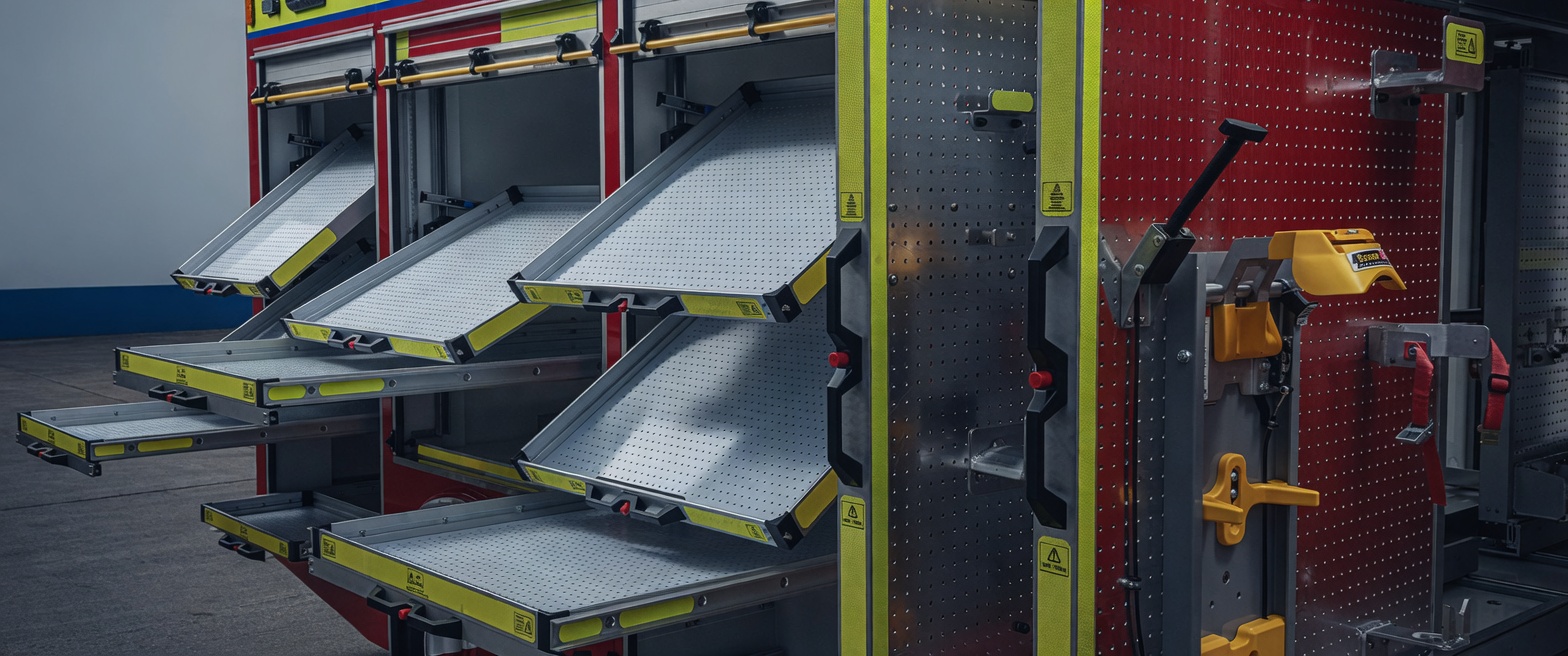

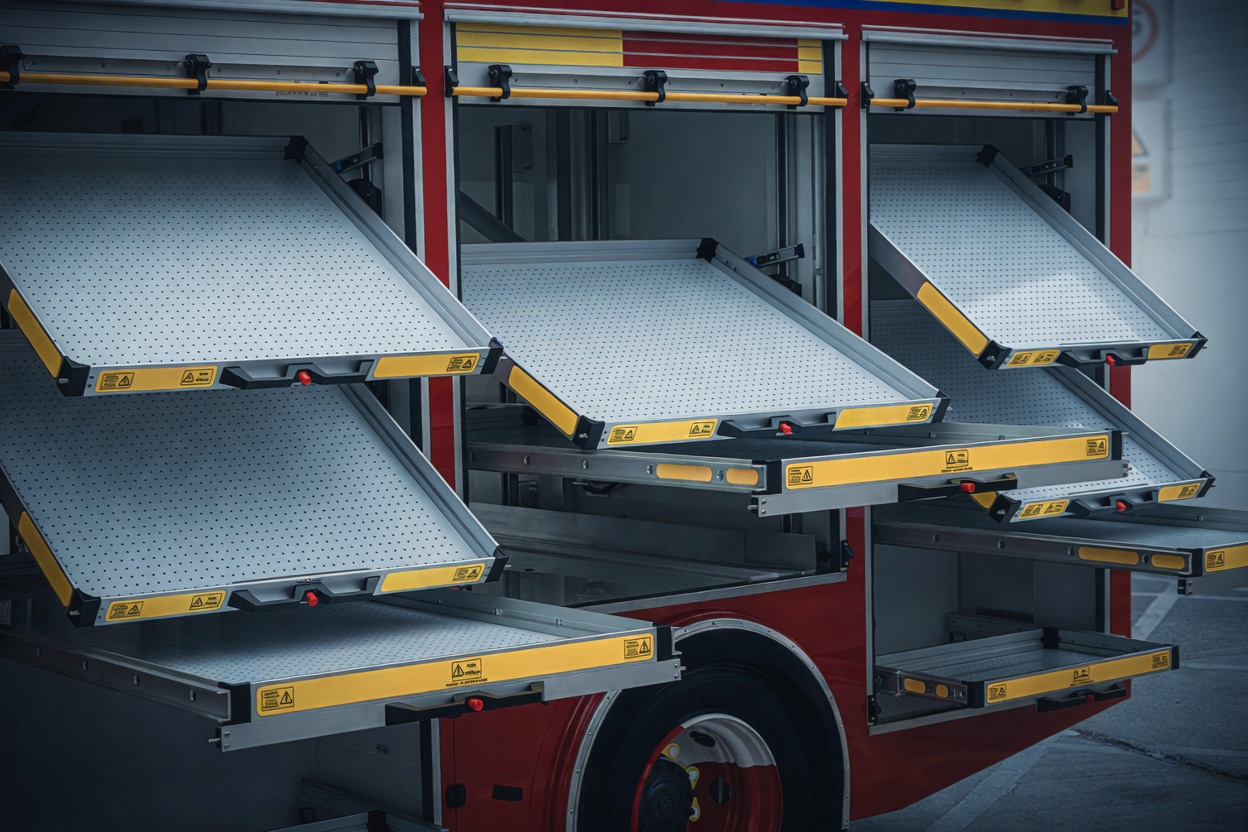

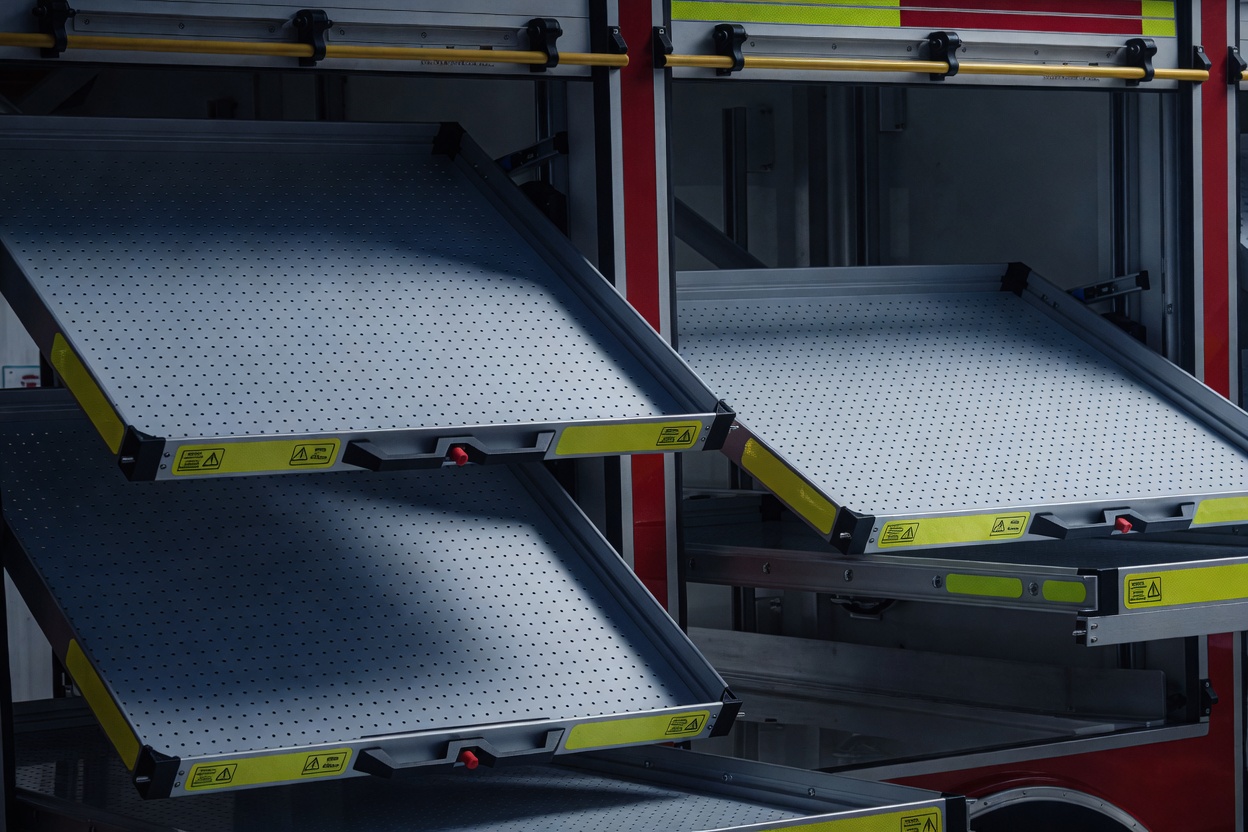

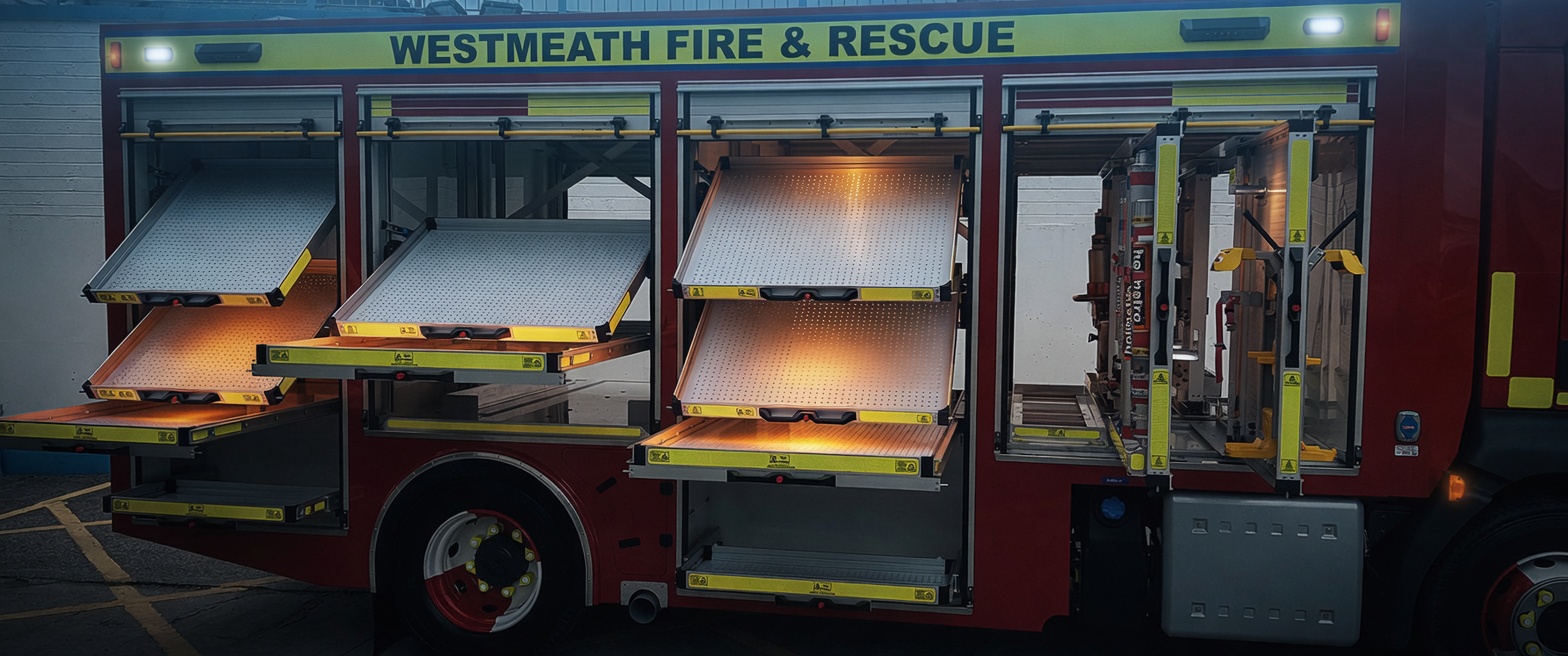

Slide & tilt
Upper lockers come down to working height. Same perforated aluminium tray as the straight slide.
- High-level stowage without climbing
- Perforated deck for straps and pegs
- Pairs with the vertical tool wall

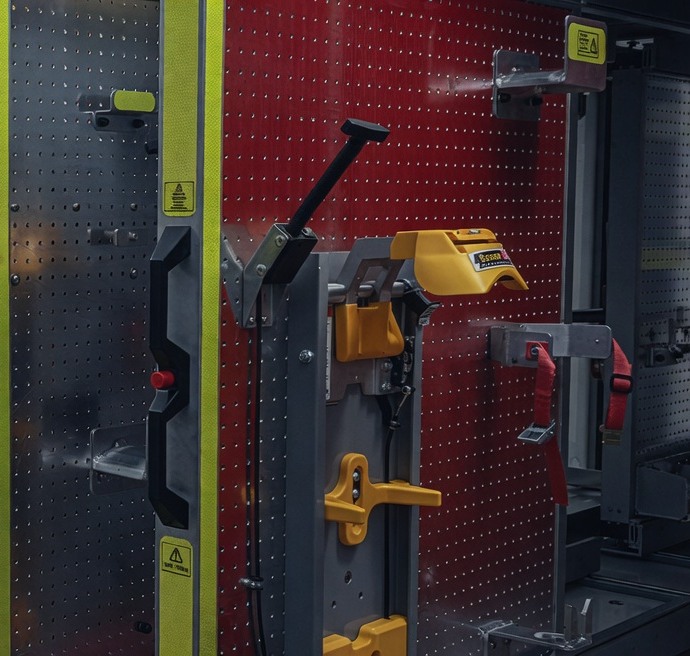

Tool wall
Vertical peg-board / clamp wall for irons, saws and bottles in the same locker run as the trays.
- Peg-board and clamp mounts
- Sits in the locker next to the drawers
- Specified locker by locker
Typical ratings
The numbers we will put on a quote
| System | Capacity / note |
|---|---|
| Lock-in / lock-out locker drawer | Up to 350 kg — fire appliance lockers |
| Load Buddy — drawer open | 250 kg fully extended |
| Load Buddy — drawer closed | 500 kg |
| Load Buddy materials | Plastic, aluminium, stainless. No mild steel. |
| Supply state | Fully assembled. Fit in minutes on a prepared locker or bed. |
| Bespoke | Width, depth and locker layout in SolidWorks to the body drawing. |
United Kingdom
Fire & rescue bodybuilders
This is the range UK appliance builders already fit. Lock-in / lock-out, slide-tilt and slam-lock are specified locker by locker against the body drawing.
- Go-to UK source for fire and rescue storage components
- Fully assembled packs for new bodies and refurb lockers
- Load Buddy for utility and commercial pickup fleets
European Union
EN 1846 appliance stowage
EN 1846-2 covers firefighting and rescue vehicle bodies, including lockers, drawers and stowage trays. We supply the drawer hardware into that body — we do not certificate the vehicle.
- EN 1846-2 — body, storage and access; locker / drawer stowage
- EN 1846-3 — permanently installed equipment on the appliance
- Metric capacities (kg) and millimetre envelopes on every quote
We will not print “EN 1846 certified” on a drawer. The standard sits on the complete vehicle. Ask for the locker layout and we will draw the tray to it.
EN 1846-2
EN 1846-3
350 kg LILO
250 / 500 kg
Load Buddy
Product gallery
On the appliance and on the pickup
Enquire
Send locker size or pickup model
Appliance locker width and depth, or pickup make / bed length. We will reply with a layout and the rating that belongs on that tray.
